EXTEND ESP RUNLIFE IN CORROSIVE SOUR WELLS
» Products and Services » Artificial Lift » Electrical Submersible Pumping Systems » H2S corrosion-resistant esp systems


What Are H2S CORROSION-RESISTANT ESP SYSTEMS

H2S corrosion-resistant ESP systems protect against harmful H2S to reduce premature system failure and lost production. Corrosion-resistant ESPs reduce sulfide stress corrosion cracking, deliver long runlife, and offer reliable performance in highly corrosive wells.

BENEFITS

Extend ESP runlife in highly corrosive wells

Corrosion-resistant materials and superior ESP design deliver long runlife and unmatched efficiency in sour wells
Reduce sulfide stress corrosion cracking

AISI 316L stainless steel protects ESP components better than
Ni-Resist iron



applications

  • Highly corrosive wells with a presence of H2S, CO2, chlorides, and acid or chemicals after treatment
  • Wells where sulfide stress corrosion cracking is likely
  • Oil and gas condensate fields

capabilities

  • Produces corrosive fluids with more than 6% H2S by volume
  • Withstands high-gas environments

features

  • AISI 316L stainless steel and corrosion-resistant powder pump stages deliver exceptional runlife in corrosive fluids
  • ESP design offers superior performance in gassy wells
  • High-efficiency pump stages reduce power consumption

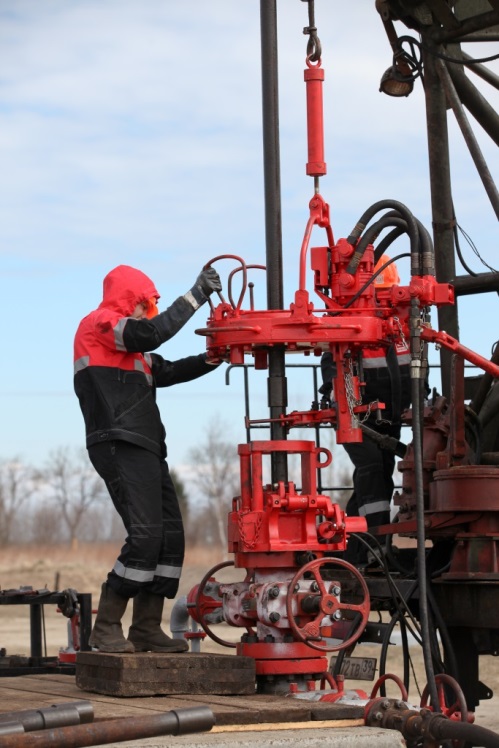

H2S corrosion-resistant ESP being installed

Austenitic cast iron (Ni-Resist)

Sulfide stress corrosion cracking occurs when high levels of H2S and water cause hydrogen embrittlement in metal subjected to critical or prolonged tensile stress. One of the most common ways to combat the corrosive effects of sour well environments on production equipment is to manufacture components from austenitic cast iron. Commonly referred to as “Ni-Resist” iron, this material is a heavily alloyed type of cast iron containing graphite and non-ferrous alloy.

AISI 316L stainless steel

AISI 316L steel contains molybdenum to increase corrosion resistance in chloride containing environments and its low carbon content stands up to welding. Our H2S corrosion-resistant ESP systems use H2S corrosion-resistant materials in the housing, cable armor, fasteners, protectors, clamps, and other various ESP components as a barrier to corrosive fluids. We incorporate corrosion-resistant powder-coated stages in the pump that deliver exceptional runtime in sour wells. Like many of our other ESP systems, the corrosion-resistant ESP saves electricity over comparable systems and offers better gas handling capabilities.

Contact us today to learn how the H2S corrosion-resistant ESP can extend runlife in harsh corrosive wells.

TECHNICAL CHARACTERISTICS

Land rig installation of  a corrosion-resistant ESP system



ESP series

from 272 to 900

Flowrates

From 15 to 10 000 m3/d

From 94 to 62,898 BBL/d

Head

Up to 3500 m

Up to 11,480 ft

Design

Standard and PowerSave
